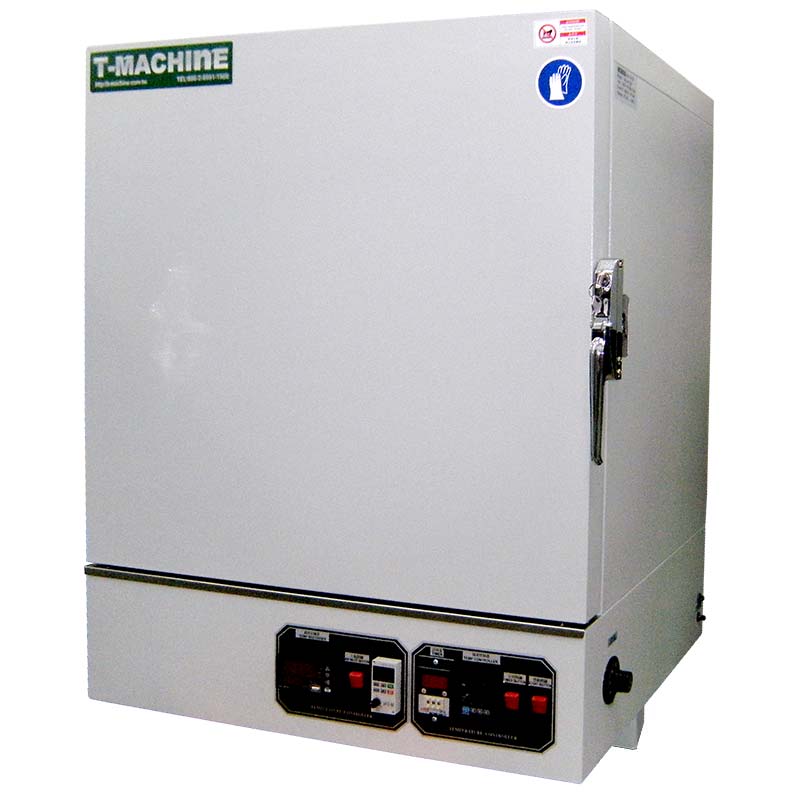

Oven

    • Product manual
    This machine is specifically designed for testing the thermal aging properties of rubber, plastics and various insulating materials. The oven is designed to test a wide range of materials including: Plastic, Rubber, Films, Packaging materials, Textiles, Leather, Adhesives, Medical products and components etc. in simulation of temperature and air circulation.

    • Features
    1. Internal material: SUS#304 stainless steel.
    2. External material: SCE steel plate with powdery painting.
    3. Air flow system: High temperature resistant long axis motor with powerful multi-wing wind wheel.
    4. Forced horizontal air circulation, special air circuit design, high temperature uniformity.
    5. Temperature control system: PID microcomputer control, PV/SV display button settings.
    6. PID+S.S.R heating system.
    7. Independent over-temperature protector, self-diagnosis function, overload automatic power-off system.
    MODEL
    SPECIFICATION    		 9713B 9713S
    Chamber Door Single Door Double Doors
    Internal(WxDxH)mm 500 x 500 x 600 1400 x 600 x 1200
    External(WxDxH)mm 750 x 620 x 1210 1650 x 770 x 1960
    Temp. Range RT+20~200℃ RT+20~200℃
    Temp Accuracy 0.1℃ 0.1℃
    Temp. Stability ±1℃ ±1℃
    Temp. Uniformity RT~100℃ ≤ 1.5℃
    100℃~200℃ ≤ 3.0℃    		 RT~100℃ ≤ 1.5℃
    100℃~200℃ ≤ 3.0℃
    Power 220V 1Φ 220V 3Φ
